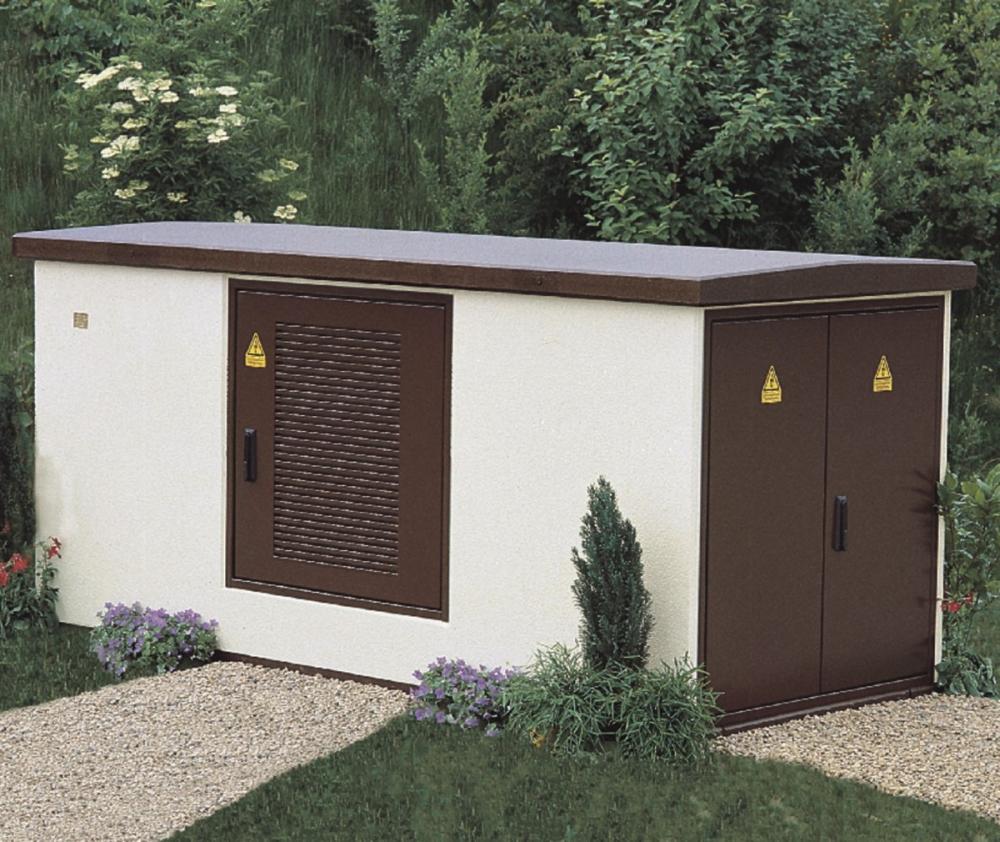

Substation NZ 240-310
- Construction: structural body, roof

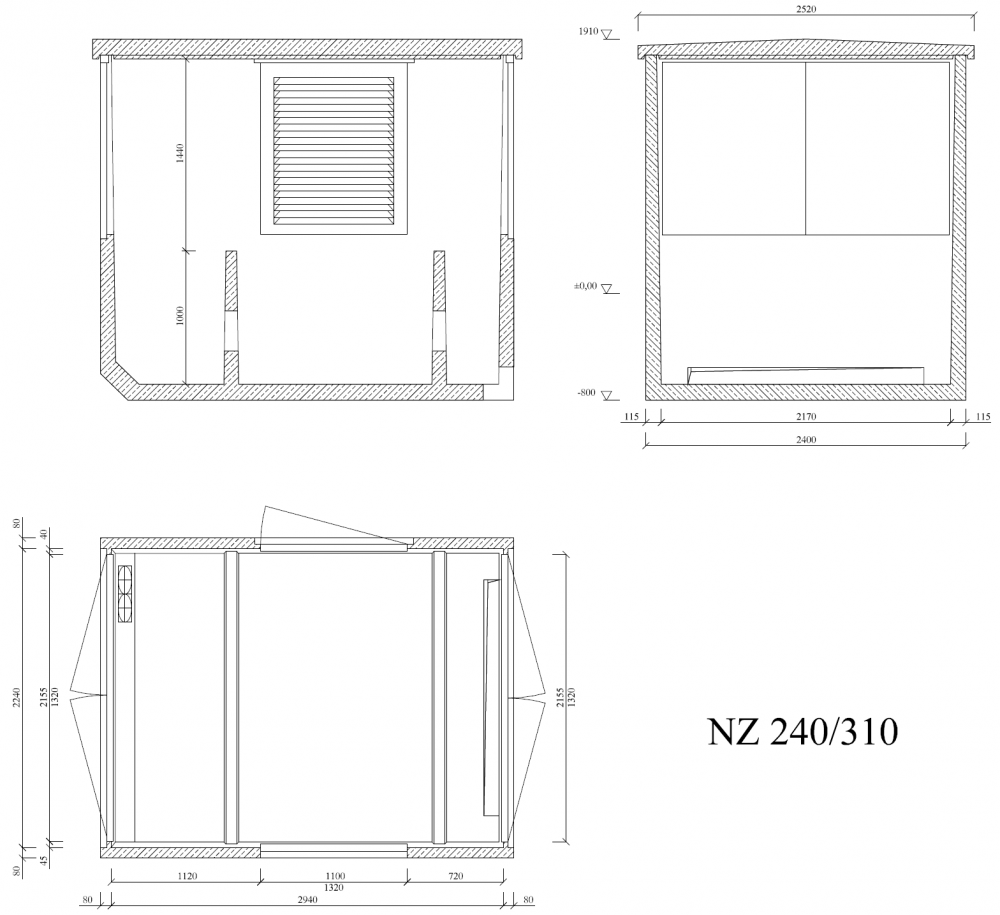

- Dimensions length, width, height: 2400 x 3100 x 2710 mm
- Embedded in the ground: 800 mm
- Built-up area: 18,00 m2
- Weight:9,79+ 2,23 t
- HV switchgear: 2- 6 fields
- Transformator: 150- 1600 (2x max 630) kVA
- LV switchgear: RH 400 - 1600 A, 6 to 12 outlets
- Measuring: HV or LV
