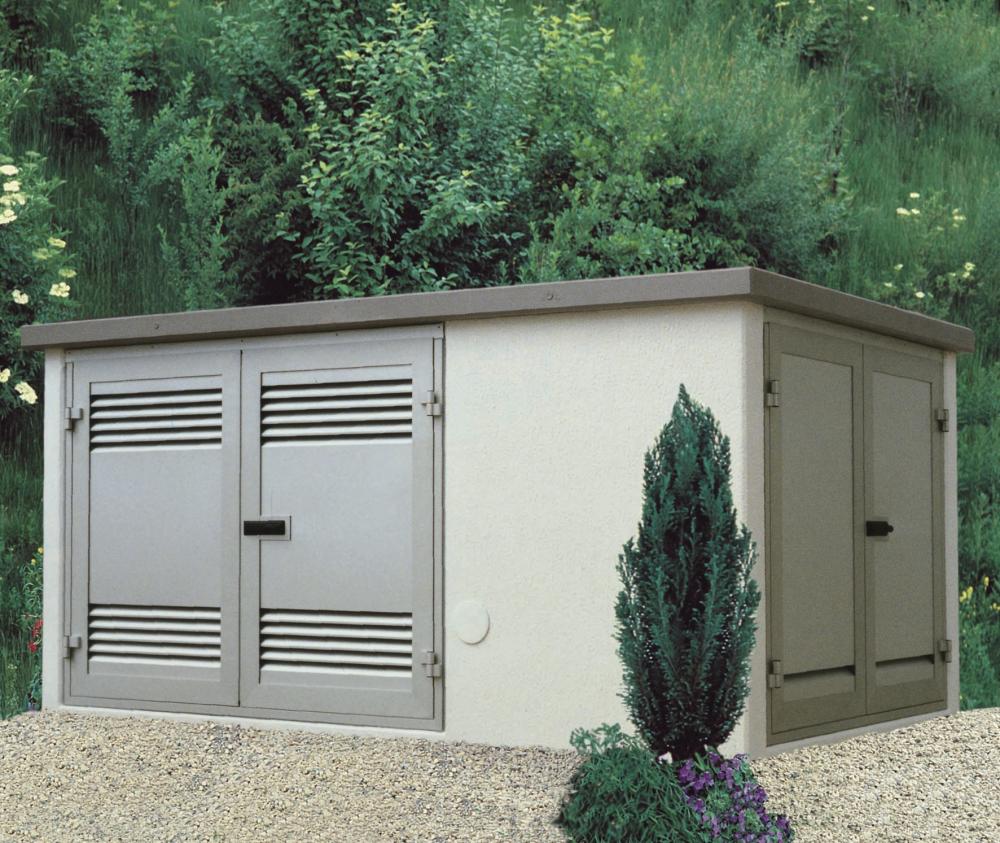

Substation NZ 195-310
- Construction: structural body, roof

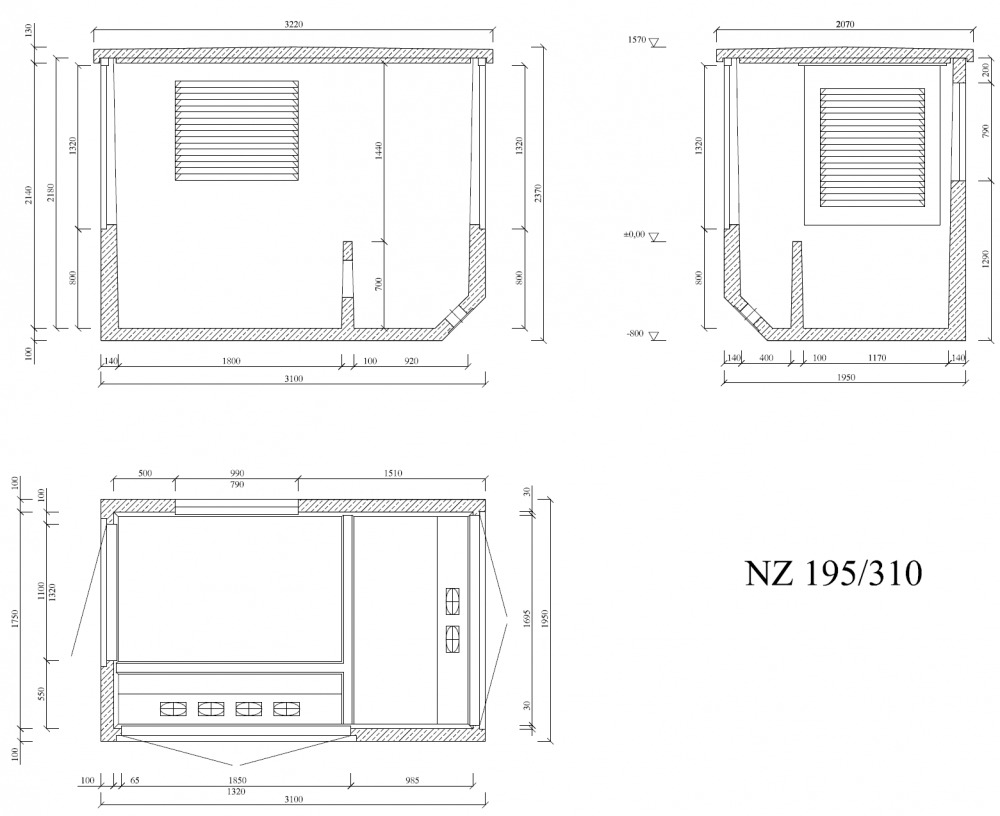

- Dimensions length, width, height: 3100 x 1950 x 2370 mm
- Embedded in the ground: 800 mm
- Built-up area: 14,33 m2
- Weight: 8,34+1,90 t
- HV switchgear: 2- 3 fields
- Transformator: 150- 800 kVA
- LV switchgear: RH 400 - 1600 A, 6 to 12 outlets
- Measuring: HV or LV
