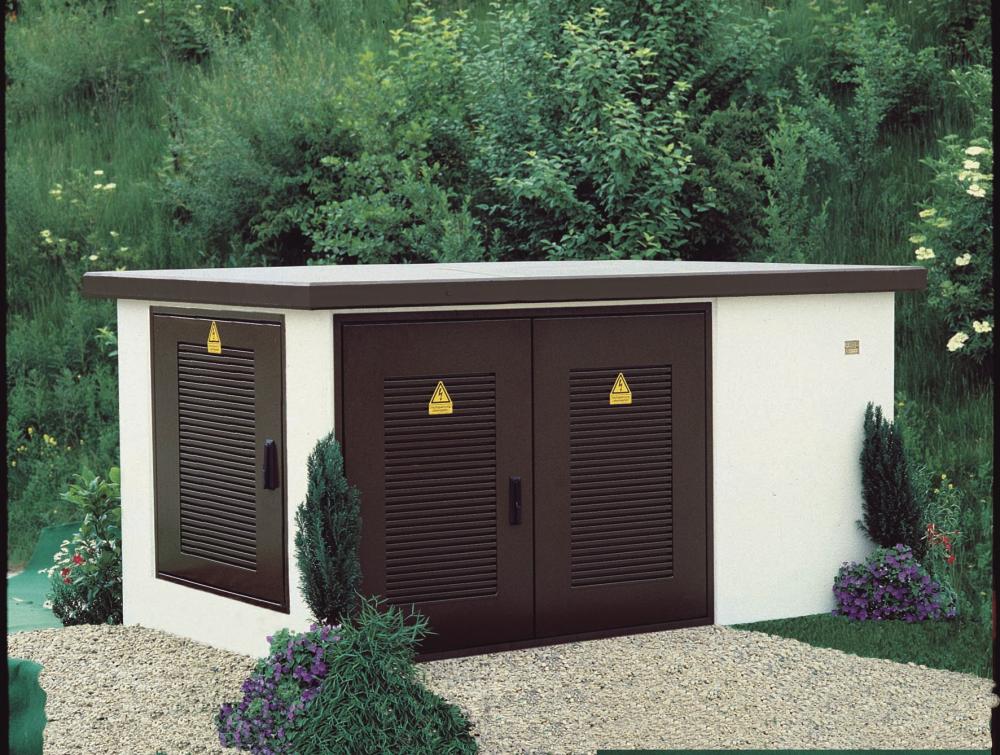

Substation NZ 173-283
- Construction: structural body, roof

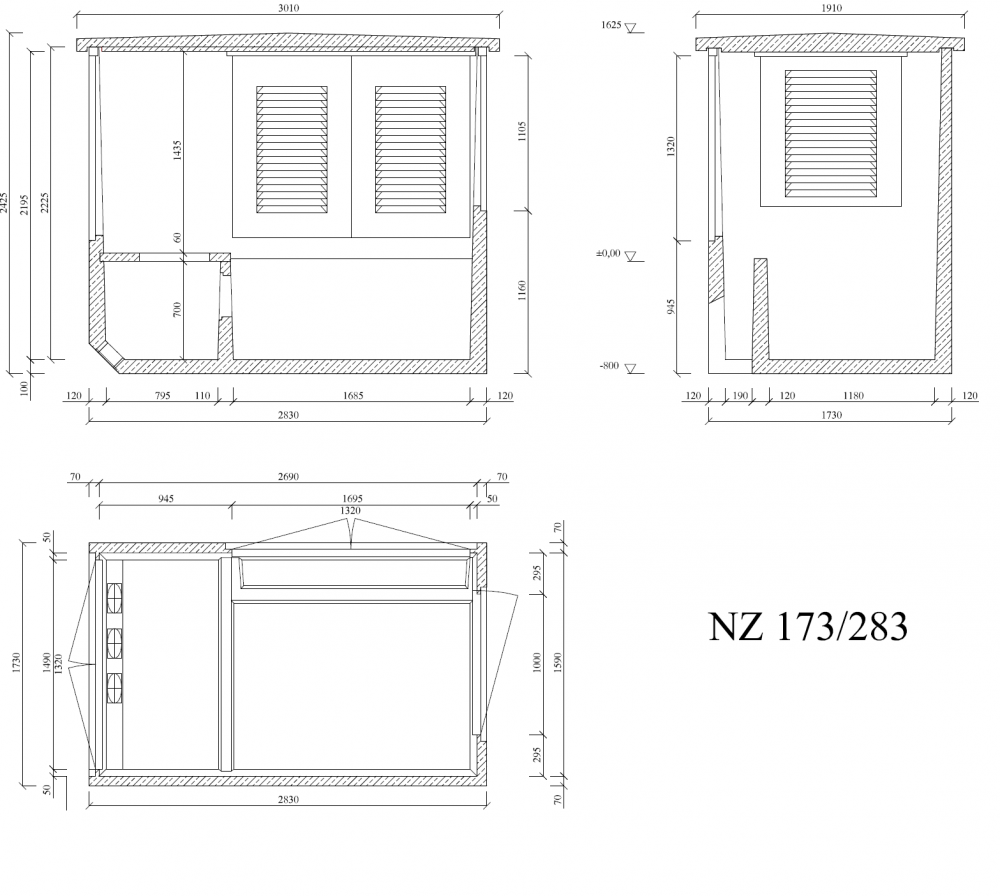

- Dimensions length, width, height: 2830 x 1730 x 2430 mm
- Embedded in the ground: 800 mm
- Built-up area: 11,9 m2
- Weight: 6,45+1,56 t
- HV switchgear: 2- 3 fields
- Transformator: 150- 630 kVA
- LV switchgear: RH 400 - 1000 A, 6 to 12 outlets
- Measuring: HV or LV
