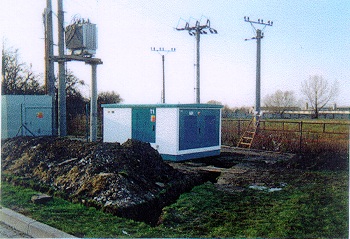

Substation NEK 250-350
- Construction: between floor, structural body, roof
- Dimensions length, width, height: 3500 x 2500 x 2790 mm
- Embedded in the ground: 800 mm
- Built-up area: 8,75 m2
- Weight: 12,1+2,97 t
- HV switchgear: 2- 4 fields
- Transformator: 150- 1600 (2x max 630) kVA
- LV switchgear: RH 400 - 2500 A, 6 to 18 outlets
- Measuring: HV or LV
