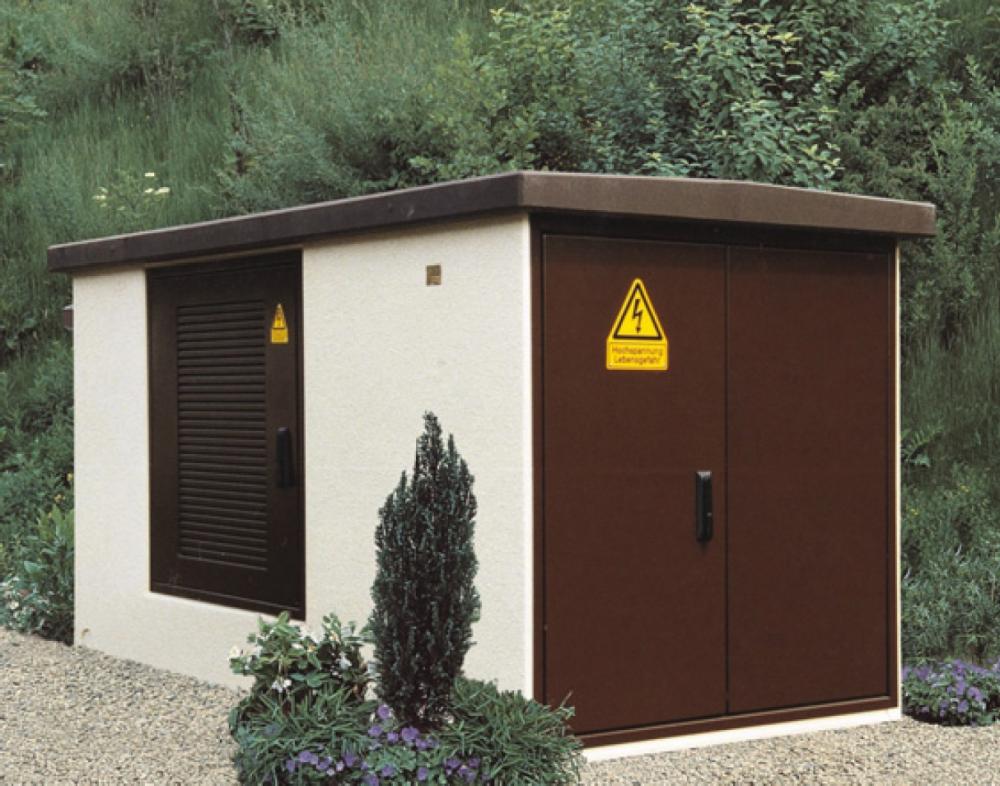

Substation NZ 130-290
- Construction: structural body, roof

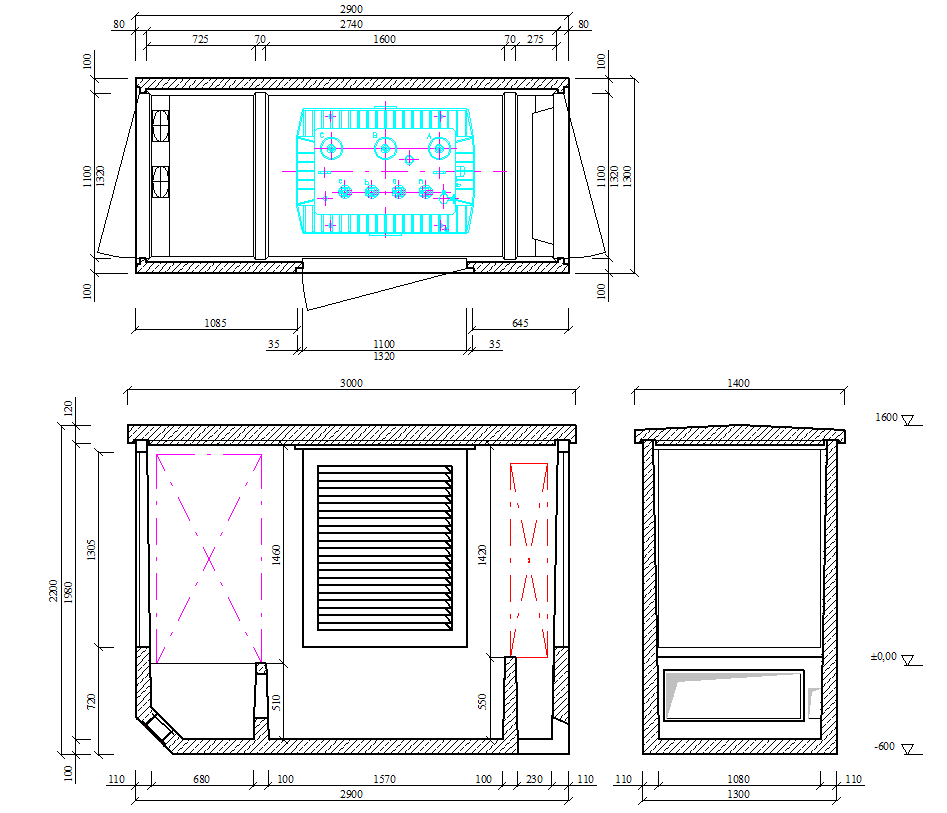

- Dimensions length, width, height: 2900 x 1300 x 2200 mm
- Embedded in the ground: 600 mm
- Built-up area: 3,77 m2
- Weight: 4,84+1,12 t
- HV switchgear: 2- 3 fields
- Transformator: 150- 630 kVA
- LV switchgear: RH 400 - 1000 A, 6 to 12 outlets
- Measuring: HV or LV
